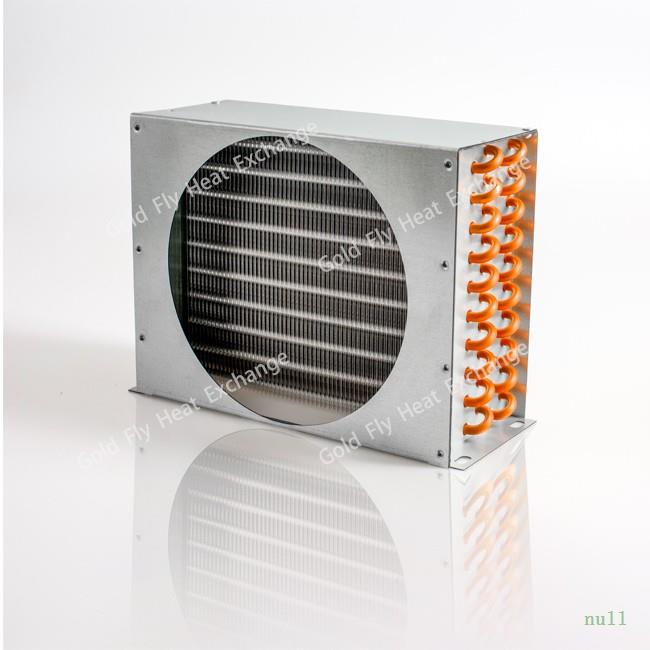

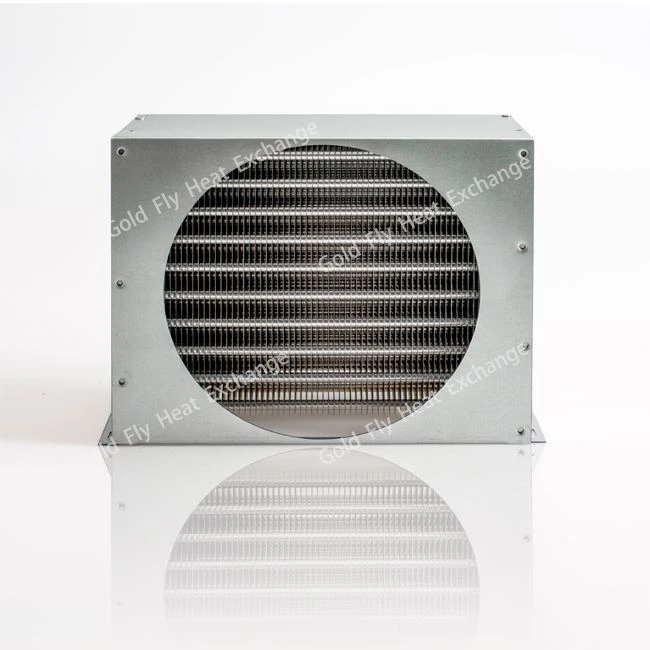

Small All-in-one Condenser Coil

The small integrated condenser coil is a finned-tube heat exchanger core designed for air cooling, suitable for freezers, compact fresh-keeping integrated units, air-source mini units, and mini refrigeration equipment. It features a standardized copper tube fin structure, serving as the core heat dissipation component inside the integrated unit. It can be customized as a complete set with an outer shell or supplied as a bare coil separately.

Shandong Gold Fly Heat Exchange Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of small all-in-one condenser coil in China. With abundant experience, we warmly welcome you to wholesale bulk advanced small all-in-one condenser coil for sale here from our factory. Customized orders are welcome.

Small all-in-one condenser coil

Name: China Small All-in-one Condenser Coil Manufacturers Suppliers Factory - Gold Fly
Brand: Gold Fly
SKU: 308402363

·Heat exchange tube: 9.52mm seamless copper tube, optional internally threaded tube, fast thermal conductivity, no leakage under pressure.

·Cooling fins: Window opening corrugated aluminum fins, equipped with hydrophilic film as standard, electrophoretic anti-corrosion optional.

·Simple bracket: Lightweight galvanized fixed frame, suitable for narrow chassis space.

规格 (mm) Specification	管距 (mm) Tube pitch	列距 (mm) Column distance	管径 (mm) Tube diameter
25*21.65	25	21.65	9.52
管材 Tube material	翅片间距 (mm) Fin spacing	翅片材质 Fin material	翅片片形 Fin shape
铜管 (光管或内螺纹) Copper pipe (plain or internal thread)	2-3 (可调) Adjustable	铝箔 (光箔或亲水箔) Aluminum foil (light foil or hydrophilic foil)	平片 Plain fin

Compact and lightweight in size, suitable for all-in-one compact enclosures, installation does not take up space;
The 4R pipeline has sufficient heat exchange, low wind resistance, and can be stably cooled with a low-power fan, saving electricity and noise;
Porous balanced liquid separation, high temperature and low pressure alarm when fully loaded, stable refrigeration operation;
Fully automatic tube expansion molding, tight fitting of copper tube fins, high heat transfer efficiency, and low fluorine leakage rate;
Standardization of specifications, support for non-standard customization of size, fin anti-corrosion, and pipe opening direction, and can be matched with the shell to make an integrated finished product;
The structure is simple and easy to clean, dust is not easy to accumulate, daily maintenance is convenient, and the cost-effectiveness is high.
