Bottom Refrigeration Unit
video
Bottom Refrigeration Unit

Bottom Refrigeration Unit

Refrigeration is the process of bringing a space or object to a temperature lower than the surrounding medium and maintaining this low temperature.

Shandong Gold Fly Heat Exchange Equipment Co., Ltd. is one of the most reliable manufacturers and suppliers of bottom refrigeration unit in China. With abundant experience, we warmly welcome you to wholesale bulk advanced bottom refrigeration unit for sale here from our factory. Customized orders are welcome.

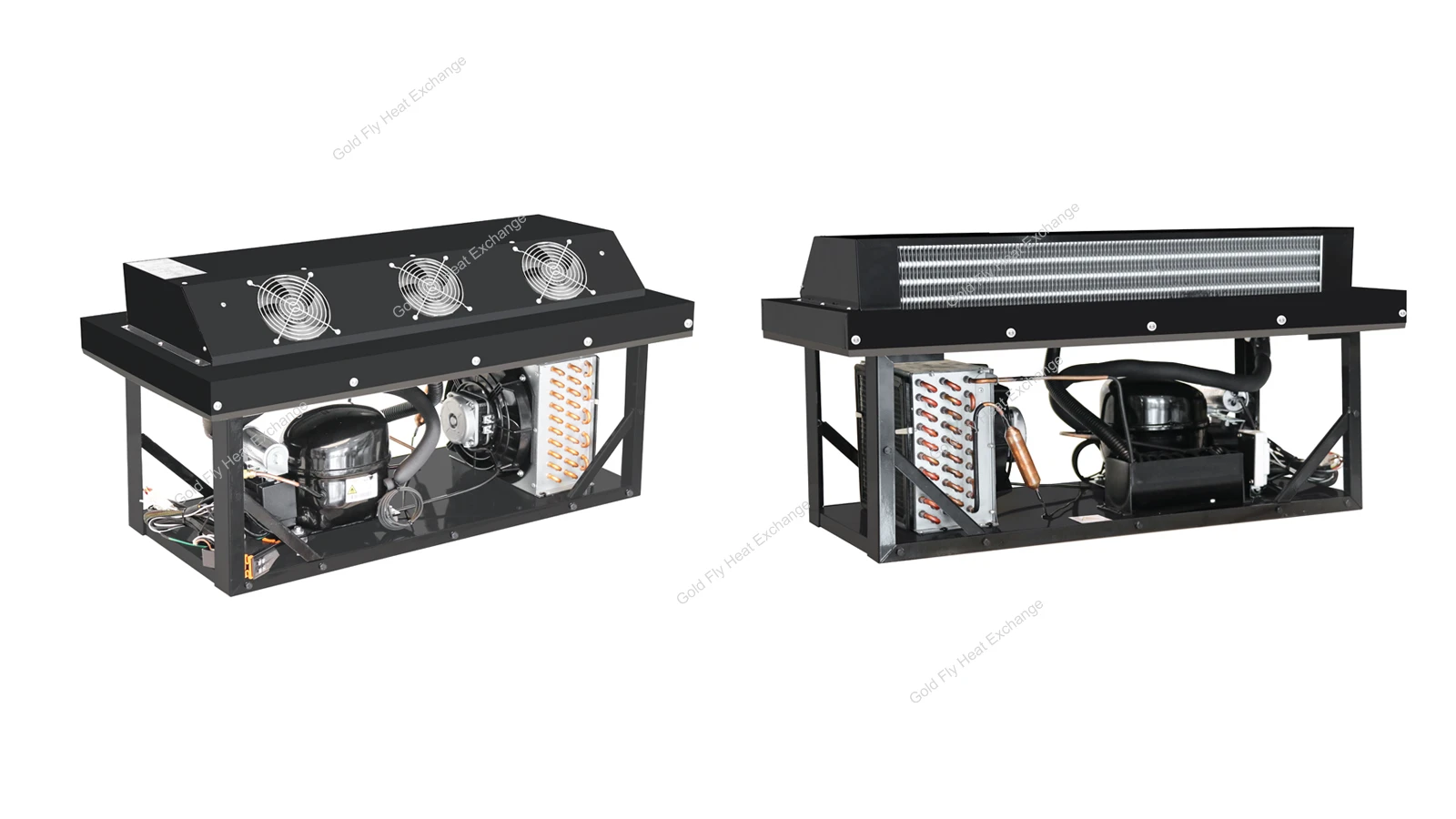

Refrigeration is the process of bringing a space or object to a temperature lower than the surrounding medium and maintaining this low temperature. Our bottom refrigeration unit achieves the cooling effect through the connection of components such as compressor, condenser, evaporator, etc. The bottom mount refrigeration unit is one of the monoblock refrigeration unit series. It can cause the temperature inside the cabinet and storage to drop in a very short period of time.

The modularity of the bottom refrigeration unit simplifies the smallest component unit and make our products more possible. As a manufacturer of direct coolers such as cake cabinets, vending machines, ice cream cabinet you does not need to purchase various accessories from several parts factories. We have completed the connection of refrigeration core components such as evaporators, condensers and compressors. Simplified multiple steps, saving a lot of manpower and time costs for you.

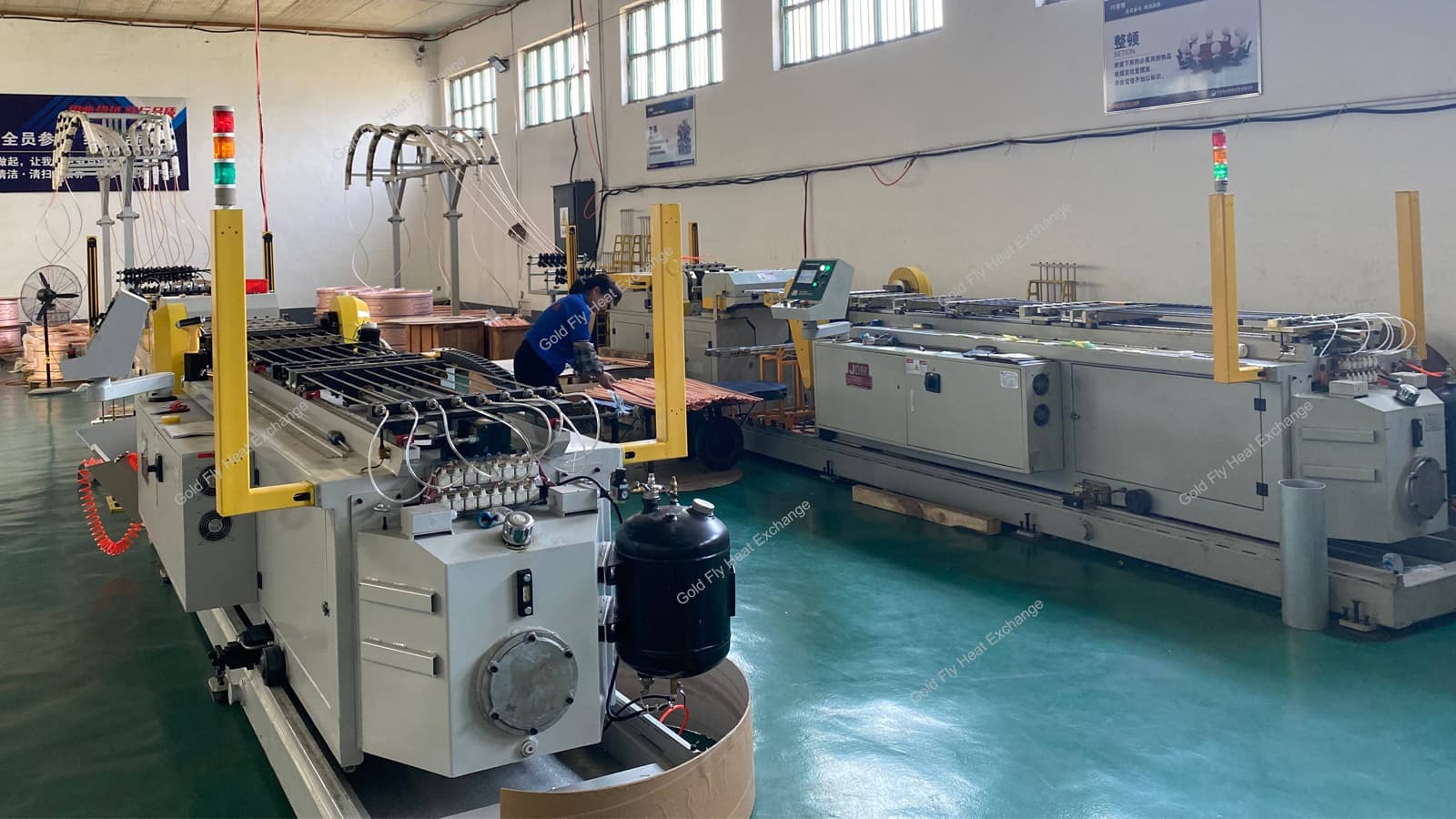

This unit is also the latest product launched by our factory. The integrated design of the unit makes it very convenient to install. At present, we have already supplied several cake display cabinet manufacturers, including the Chinese and overseas markets, and the feedback is very good. These positive reviews are the driving force that keeps us moving forward. The condenser and evaporator used in the unit are produced in our own factory. We have more than 20 years of history in this field and Compressors and other accessories are purchased from other famous brands. In addition, we have a professional team to continuously improve and design products to ensure their quality.



Technical Data

Name

BOTTOM-MOUNTED CHILLING UNIT

Model

BAM7U

Power Supply

220-240V/50Hz, 110v/60Hz

Refrigerant

R290

Defrosting

Fan Defrosting

Compressor Model

Cubigel-NUG100NA

Test Environment

Temperature:32 ℃ Humidity:65%

Temperature

2℃~8℃

Condensing Temperature

45℃

Evaporation Temperature

-15℃

Cooling Capacity

688W

Unit Power

470W

Working Current

2.47A

Applicable Volume

≤700L

Executive Standard

JB/T 7244-2018

product-1600-900
product-1600-900

Hot Tags: bottom refrigeration unit, China bottom refrigeration unit manufacturers, suppliers, factory, socket bottom monoblock unit, precision bottom monoblock unit, stainless steel bottom monoblock unit, electronic bottom monoblock unit, fixture bottom monoblock unit, aluminum bottom monoblock unit
